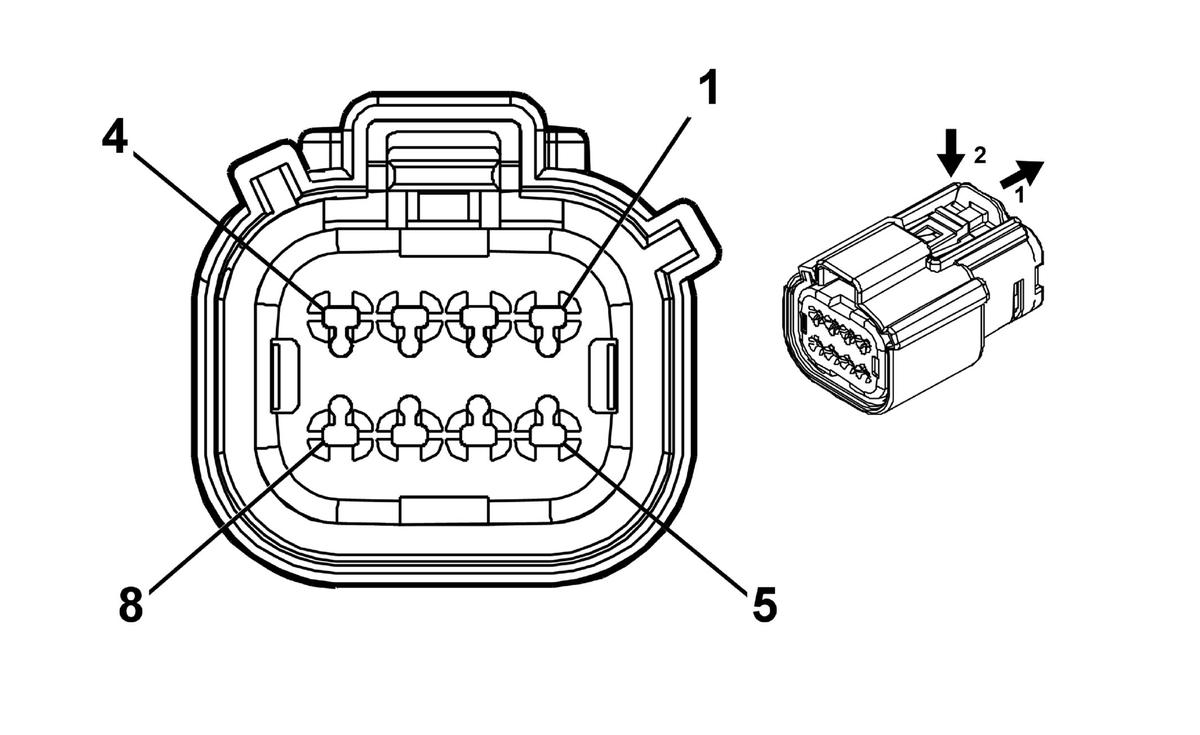

E13LA Front Headlamp - Left X2 (TR7)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type:Forward Lamp Wiring Harness
- OEM Connector: 35093783
- Service Connector: 84894047
- Description: 8-Way F 1.5 MX Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-2A (GY) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GN/GY |
2859 |
Body Control Module LIN Bus 13 |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
BK/BN |
2185 |
Vehicle Level Control Position Sensor Low Reference |
I |
- |
| 4 |
0.35 |
BN |
2184 |
Vehicle Level Control Position Sensor Signal |
I |
- |
| 5 |
0.35 |
WH/RD |
2165 |
Vehicle Level Control Position Sensor 5V Reference |
I |
- |
| 6 |
0.35 |
BK/GY |
7526 |
Front Axle Level Sensor Low Reference |
I |
- |
| 7 |
0.35 |
BN/WH |
7525 |
Front Vehicle Level Sensor Signal |
I |
- |
| 8 |
0.35 |
WH/RD |
7524 |
Front Vehicle Level Sensor 5V Reference |
I |
- |
