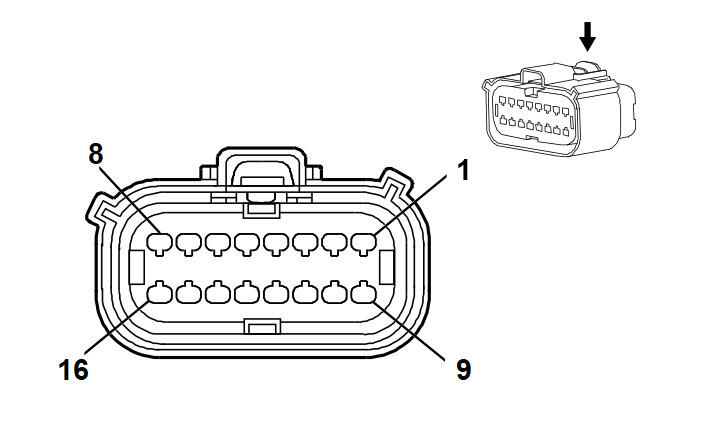

E13LA Front Headlamp - Left X1 (TR7)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type:Forward Lamp Wiring Harness
- OEM Connector: 13578135
- Service Connector: 19356493
- Description: 16-Way F 1.5 MX Series, Sealed (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19368973 |
J-35616-2A (GY) |
J-38125-217 |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK |
550 |
Ground |
I |
- |
| 2 |
0.5 |
YE |
712 |
Left Headlamp Low Beam Control |
I |
- |
| 3 |
0.5 |
WH |
711 |
Left Headlamp High Beam Control |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.5 |
GN |
2746 |
Left Front Lamp Assembly Control |
I |
- |
| 6 |
0.5 |
GY/BU |
7538 |
Left Front DRL Control |
I |
- |
| 7 |
0.35 |
YE |
2744 |
Left Daytime Running Lamp Synchronization Signal |
I |
- |
| 8 |
0.5 |
YE/WH |
5181 |
Right Headlamp Leveling Actuator 2 Control |
I |
- |
| 9 |
0.5 |
BU/GY |
5183 |
Right Headlamp Leveling Actuator 4 Control |
I |
- |
| 10 |
0.5 |
VT/WH |
5180 |
Right Headlamp Leveling Actuator 1 Control |
I |
- |
| 11 |
0.5 |
GN/VT |
5182 |
Right Headlamp Leveling Actuator 3 Control |
I |
- |
| 12 |
0.5 |
BK |
2171 |
Right Headlamp Leveling Motor Low Reference |
I |
- |
| 13 |
0.35 |
RD/BU |
1240 |
Battery Positive Voltage |
I |
- |
| 14 |
0.5 |
BK |
550 |
Ground |
I |
- |
| 15 - 16 |
- |
- |
- |
Not Occupied |
- |
- |
