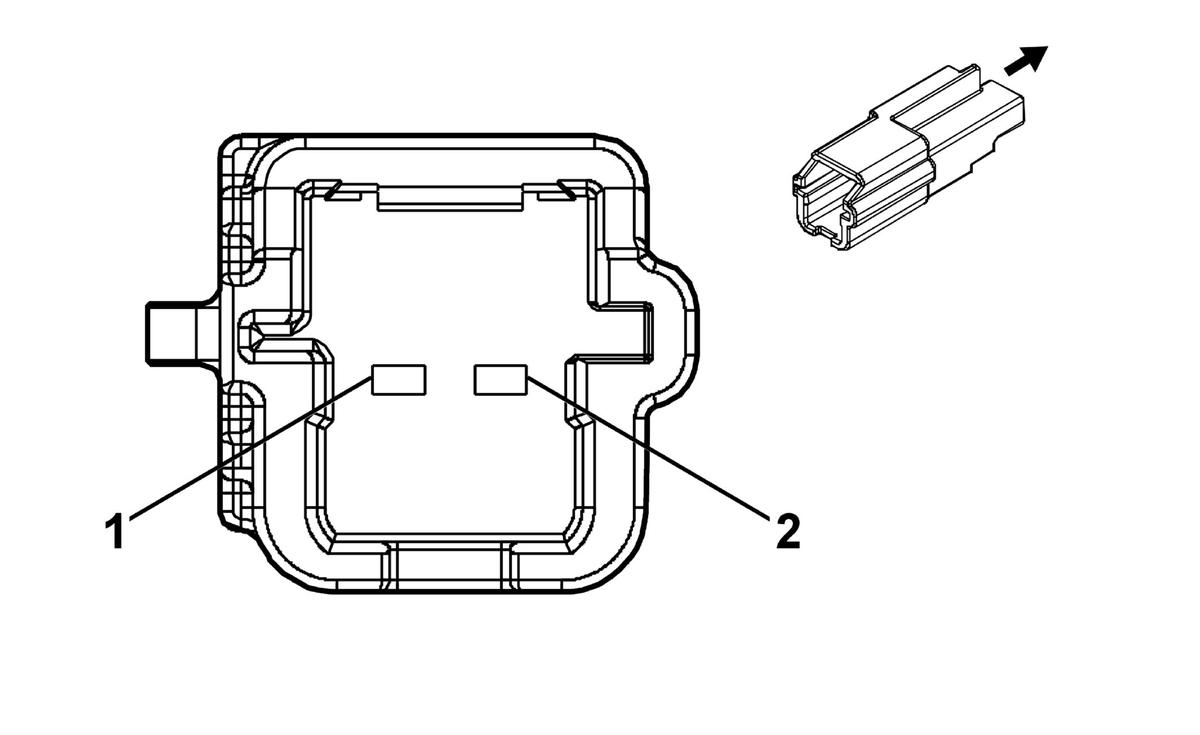

B88RR Seat Belt Switch - Right Rear (UHO)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type:Rear Seat Wiring Harness
- OEM Connector: 1003357
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way M 1.2 Series
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-13 (BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK/OG |
1363 |
Driver Seat Belt Switch Low Reference |
I |
- |
| 2 |
0.5 |
BN/OG |
5162 |
Right Rear Seat Belt Switch Signal |
I |
- |
