Radio Speaker Amplifier Replacement
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

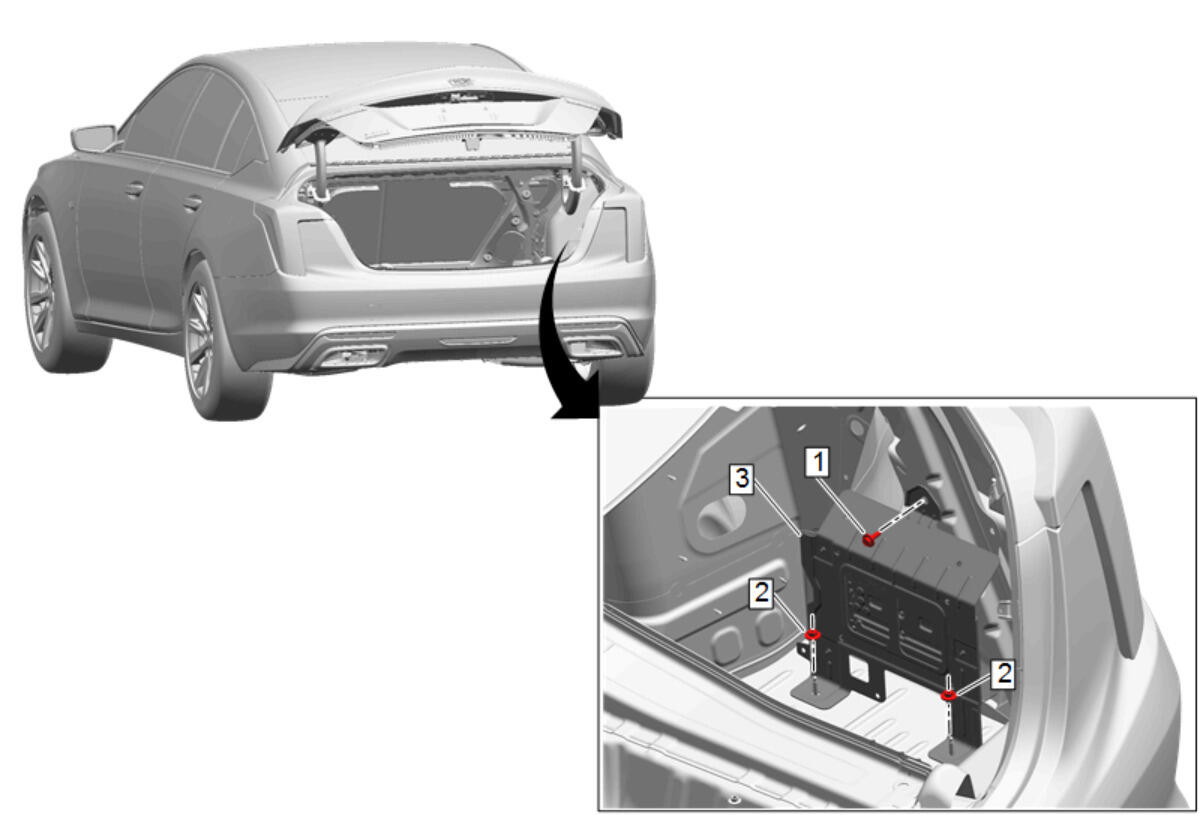

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Compartment Side Trim Replacement - Right Side |
|
| 1 | Radio Speaker Amplifier Bolt
CAUTION:
Refer to:Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Radio Speaker Amplifier Nut [2x] Tighten 9 N.m (80 lb in) |
| 3 | Radio Speaker Amplifier Procedure
|
