Instrument Panel Center Trim Pad Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

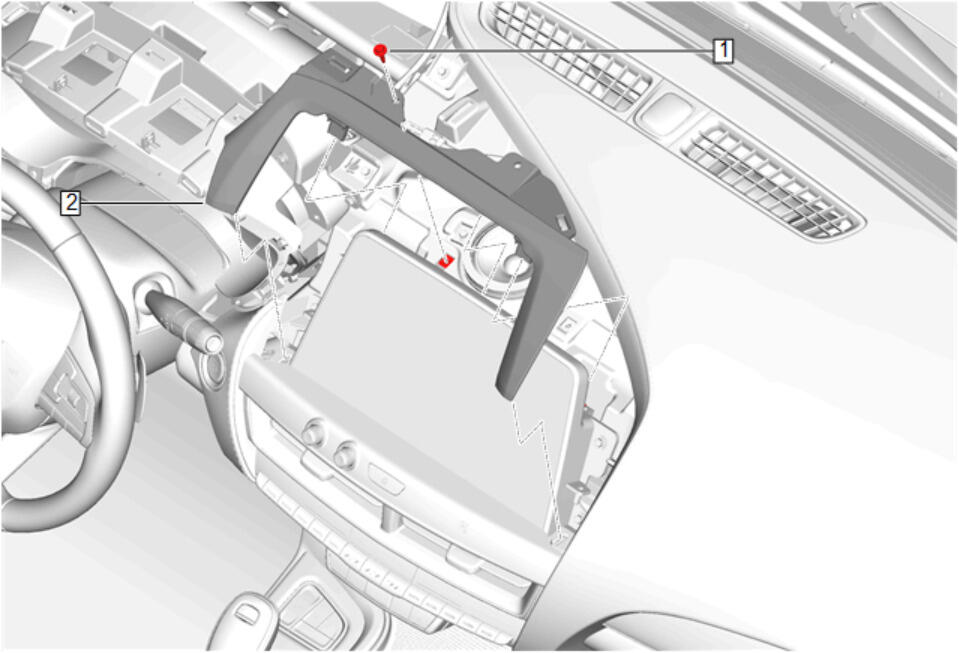

Callout	Component Name
Preliminary Procedures Instrument Panel Cluster Trim Plate Applique Replacement Instrument Panel Instrument Cluster Hood Replacement
1	Instrument Panel Center Trim Pad Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Center Trim Pad Procedure Using a flat-bladed plastic trim tool, release the retaining clips.

Callout

Component Name

Preliminary Procedures

Instrument Panel Cluster Trim Plate Applique Replacement
Instrument Panel Instrument Cluster Hood Replacement

Instrument Panel Center Trim Pad Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Instrument Panel Center Trim Pad
Procedure
Using a flat-bladed plastic trim tool, release the retaining clips.
