Front Seat Removal and Installation

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

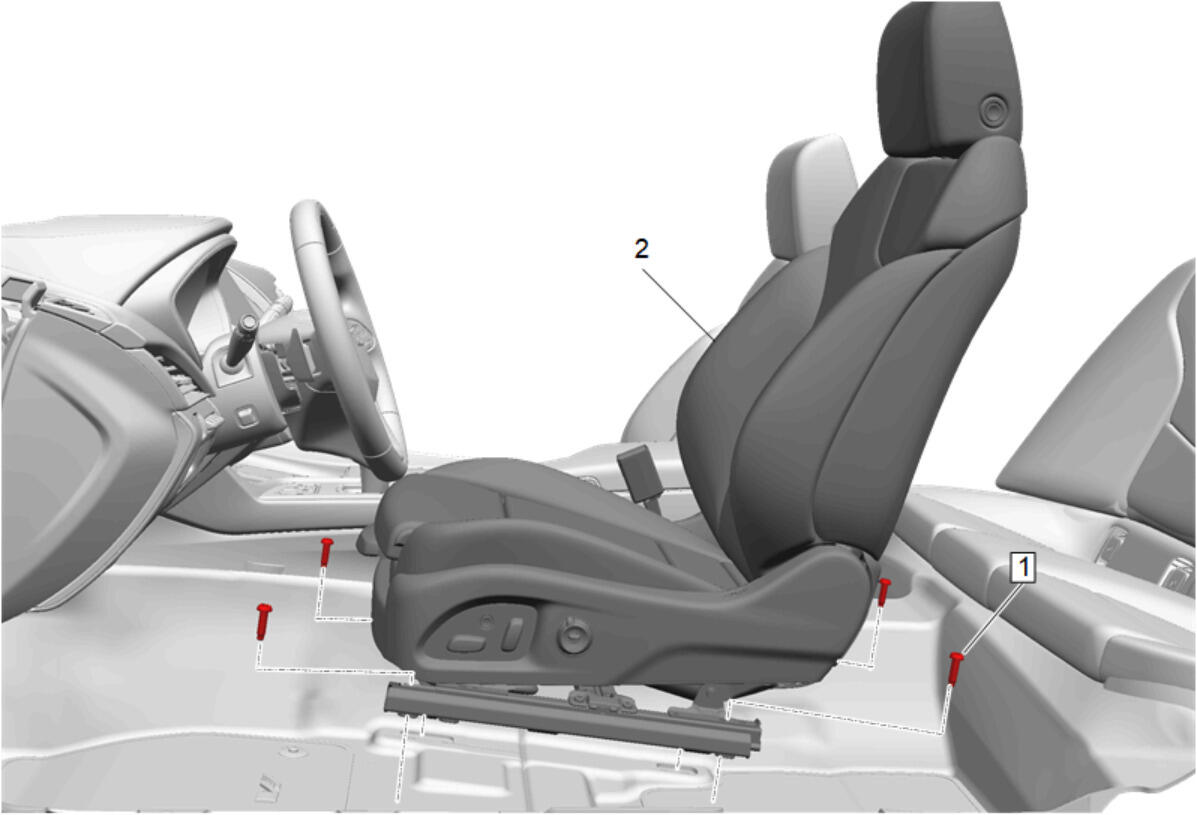

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedure Disable the SIR system. SIR Disabling and Enabling
1	Driver or Passenger Seat Bolt [4x] CAUTION: Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Front Seat Procedure Engage the seat adjuster locking retainer to keep the seat track locked in position during removal, if equipped. Disconnect the electrical connector. With the aid of an assistant, remove the front seat. Transfer components as necessary. Disengage the seat adjuster locking retainer to unlock the seat track after installation, if equipped. Enable the SIR System. SIR Disabling and Enabling

Callout

Component Name

WARNING:

Refer to SIR Warning .

Preliminary Procedure Disable the SIR system. SIR Disabling and Enabling

Driver or Passenger Seat Bolt [4x]

CAUTION:

Fastener Caution .

Tighten
45 N.m (33 lb ft)

Front Seat

Procedure

Engage the seat adjuster locking retainer to keep the seat track locked in position during removal, if equipped.
Disconnect the electrical connector.
With the aid of an assistant, remove the front seat.
Transfer components as necessary.
Disengage the seat adjuster locking retainer to unlock the seat track after installation, if equipped.
Enable the SIR System. SIR Disabling and Enabling
