Front Seat Removal and Installation (Blackwing)

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

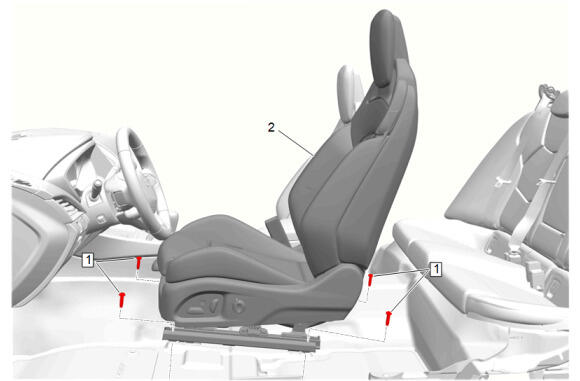

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedure Disable the SIR system. SIR Disabling and Enabling
1	Front Seat Bolt [4x] CAUTION: Fastener Caution . Procedure Position the seat as necessary to access the seat bolts. Tighten 45 N.m (33 lb ft)
2	Front Seat Procedure Disconnect the electrical connector. With the aid of an assistant, remove the front seat. Enable the SIR System. SIR Disabling and Enabling

Callout

Component Name

WARNING:

Refer to SIR Warning .

Preliminary Procedure Disable the SIR system. SIR Disabling and Enabling

Front Seat Bolt [4x]

CAUTION:

Fastener Caution .

Procedure
Position the seat as necessary to access the seat bolts.
Tighten
45 N.m (33 lb ft)

Front Seat

Procedure

Disconnect the electrical connector.
With the aid of an assistant, remove the front seat.
Enable the SIR System. SIR Disabling and Enabling
