Steering Column Tilt Wheel and Telescope Control Module Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

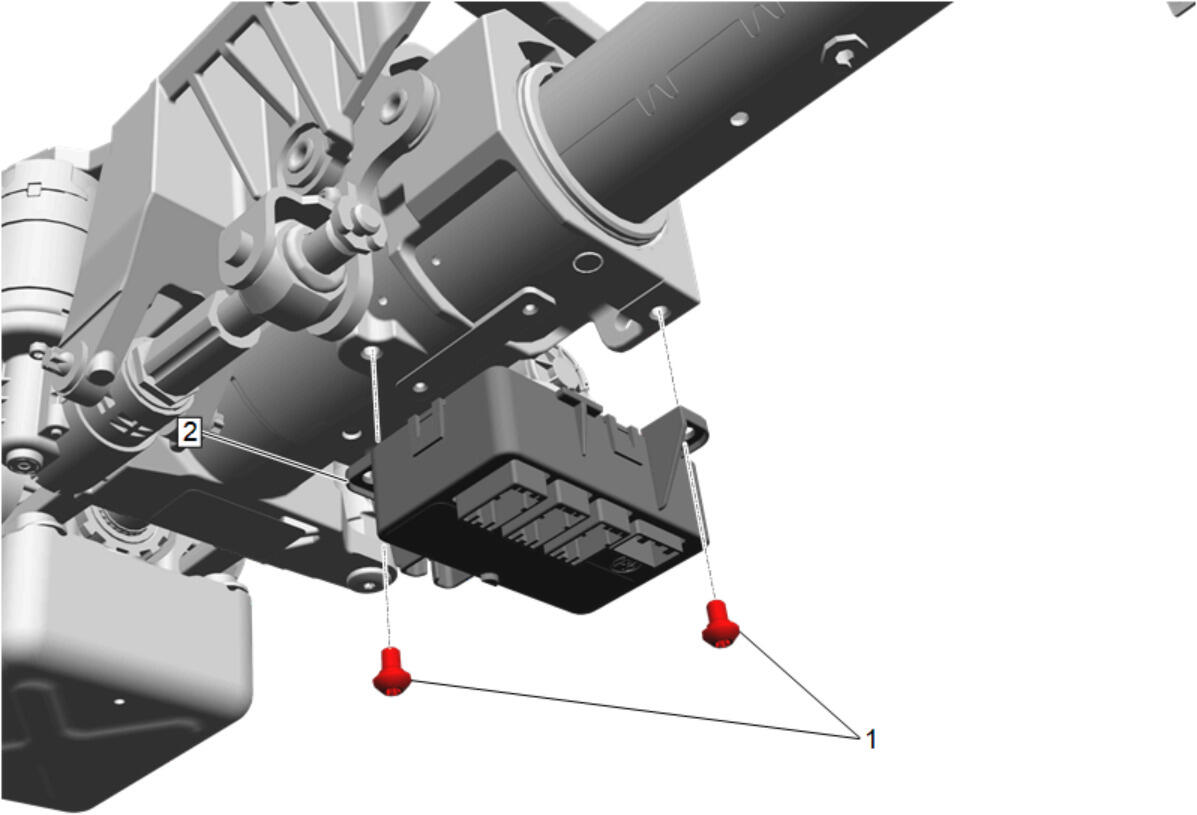

Callout	Component Name
Preliminary Procedures Instrument Panel Knee Bolster Replacement Instrument Panel Knee Bolster Deflector Replacement Instrument Panel Steering Column Lower Trim Cover Replacement
1	Steering Column Control Module Bracket Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Steering Column Tilt Wheel and Telescope Control Module Procedure Disconnect the electrical connectors. After installation and before the instrument panel knee bolster is installed, relearn the soft and hard stops. Steering Column Tilt Wheel and Telescope Control Module Learn In order to relearn the steering column soft and hard stops, the steering column MUST be mounted and fastened and the steering column upper and lower trim covers CANNOT be installed.

Callout

Component Name

Preliminary Procedures

Instrument Panel Knee Bolster Replacement
Instrument Panel Knee Bolster Deflector Replacement
Instrument Panel Steering Column Lower Trim Cover Replacement

Steering Column Control Module Bracket Bolt [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Steering Column Tilt Wheel and Telescope Control Module

Procedure

Disconnect the electrical connectors.
After installation and before the instrument panel knee bolster is installed, relearn the soft and hard stops. Steering Column Tilt Wheel and Telescope Control Module Learn

In order to relearn the steering column soft and hard stops, the steering column MUST be mounted and fastened and the steering column upper and lower trim covers CANNOT be installed.
