B25B Clutch Pedal Position Sensor (MG9)
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

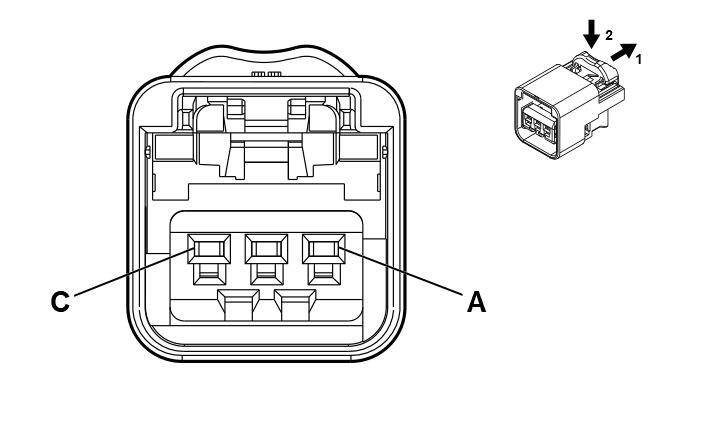

Connector Part Information
- Harness Type: Forward Lamp Wiring Harness
- OEM Connector: 35075016
- Service Connector: 84826422
- Description: 3-Way F 150 GT Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-14 (GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.5 |
WH / RD |
480 |
Engine Control Vehicle Sensors 5 Volt Reference 1 |
I |
- |
| B |
0.5 |
YE |
6111 |
Clutch Pedal Position Sensor Signal |
I |
- |
| C |
0.5 |
BK / GY |
626 |
Engine Control Vehicle Sensors Low Reference 1 |
I |
- |
