E13RA Front Headlamp - Right (-T87)
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

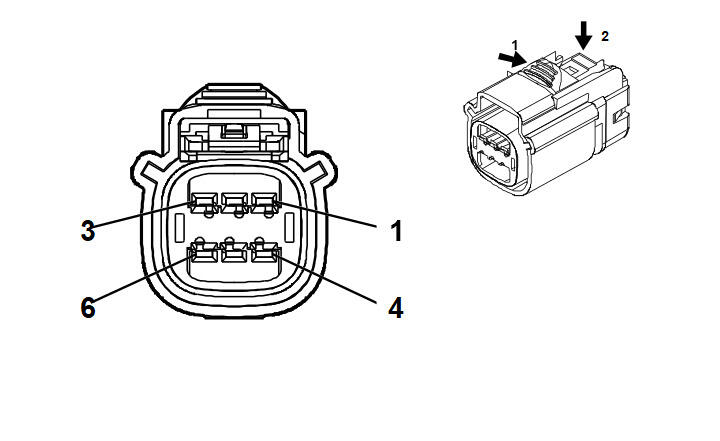

Connector Part Information
- Harness Type: Forward Lamp Wiring Harness
- OEM Connector: 15513504
- Service Connector: 84999473
- Description: 6-Way F 1.5 OCS Series, Sealed(BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-2A (GY) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK |
650 |
Ground |
I |
- |
| 2 |
0.5 |
YE |
312 |
Right Headlamp Low Beam Control |
I |
- |
| 3 |
0.5 |
WH |
311 |
Right Headlamp High Beam Control |
I |
- |
| 4 |
0.5 |
BK |
650 |
Ground |
I |
- |
| 5 |
0.35 |
BU / BN |
7539 |
Right Front DRL Control |
I |
- |
| 6 |
0.5 |
BU / GN |
1253 |
Right Front Park Lamp Control |
I |
- |
