E13LA Front Headlamp - Left (T87)
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

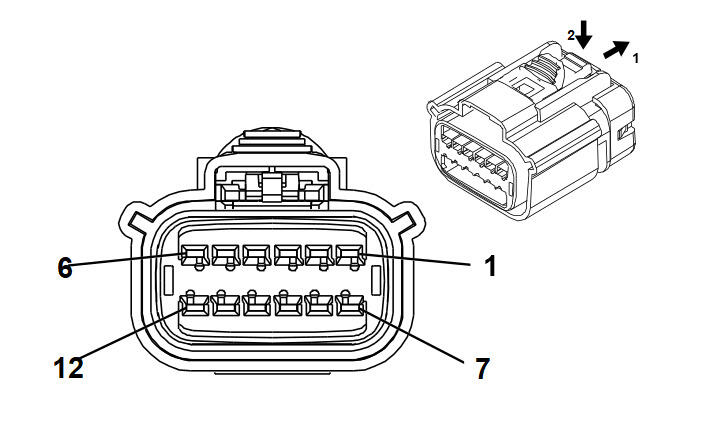

Connector Part Information
- Harness Type: Forward Lamp Wiring Harness
- OEM Connector: 15514623
- Service Connector: 19355594
- Description: 12-Way F 1.5 OCS Series, Sealed(BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19370817 |
J-35616-2A (GY) |
J-38125-215A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK |
750 |
Ground |
I |
- |
| 2 |
0.5 |
YE |
712 |
Left Headlamp Low Beam Control |
I |
- |
| 3 |
0.5 |
WH |
711 |
Left Headlamp High Beam Control |
I |
- |
| 4 |
0.5 |
YE / GY |
57 |
Left Cornering Lamp Control |
I |
- |
| 5 |
0.5 |
BK |
750 |
Ground |
I |
- |
| 6 |
0.5 |
GN |
2746 |
Left Front Lamp Assembly Control |
I |
- |
| 7 |
0.5 |
GY / BU |
7538 |
Left Front DRL Control |
I |
- |
| 8 |
0.5 |
BU / WH |
1314 |
Left Front Turn Signal Lamp Control |
I |
- |
| 9 |
0.35 |
VT / BK |
6568 |
Front Turn Signal Lamp Feedback Signal |
I |
- |
| 10 - 12 |
- |
- |
- |
Not Occupied |
- |
- |
