Passenger Seat Harness Routing

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
GM5844044Courtesy of GENERAL MOTORS COMPANY

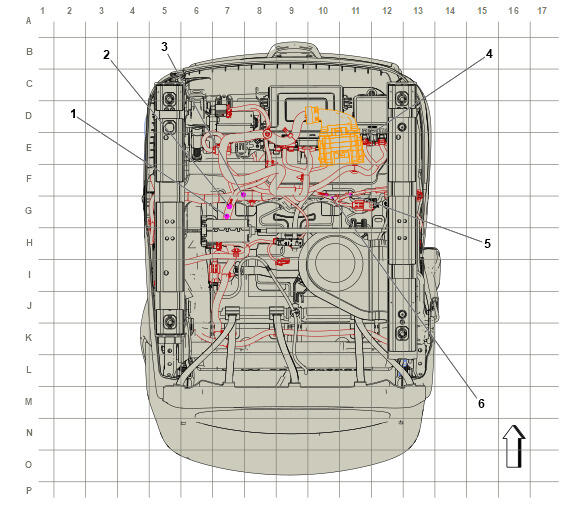

Passenger Seat Harness Routing

Harness Name Callout
J338 Front Seat Wiring Harness (KU9) 1
J339 Front Seat Wiring Harness (KA1) 2
J309 Front Seat Wiring Harness 3
X322 Front Seat Wiring Harness - Passenger to Body Wiring Harness X322 Front Seat Wiring Harness - Passenger to Body Wiring Harness 4
J356 Body Wiring Harness 5
J341 Front Seat Wiring Harness 6
