Section 469 (Electrical Component Locator And Harness Routing Views)
>>
Schematic Wiring Diagrams
>>
Harness Routing Views
>>
Passenger Door Harness Routing
Passenger Door Harness Routing
WARNING:
This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

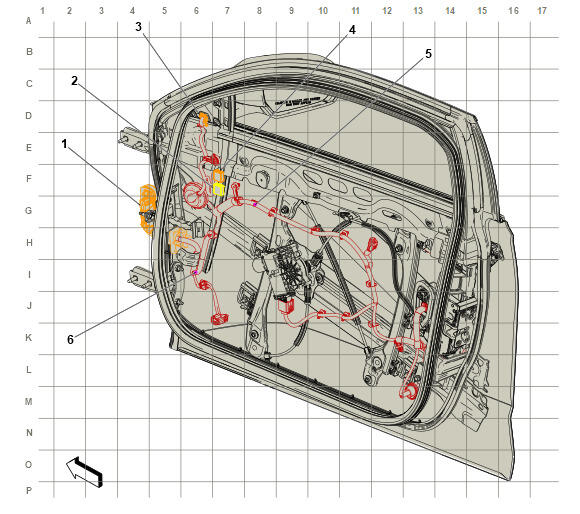

Passenger Door Harness Routing
Harness Name
Callout
X304 Front Side Door Door Wiring Harness - Passenger to Body Wiring Harness
X304 Front Side Door Door Wiring Harness - Passenger to Body Wiring Harness (-1SF)
X304 Front Side Door Door Wiring Harness - Passenger to Body Wiring Harness (1SF)
1
X342 Front Side Door Door Wiring Harness - Passenger to Front Side Door Door Lock Door Wiring Harness -
X342 Front Side Door Door Wiring Harness - Passenger to Front Side Door Door Lock Door Wiring Harness - Passenger
2
X381 Front Side Door Door Wiring Harness - Passenger to Outside Rearview Mirror - Passenger
X381 Front Side Door Door Wiring Harness - Passenger to Outside Rearview Mirror - Passenger (-UV2)
X381 Front Side Door Door Wiring Harness - Passenger to Outside Rearview Mirror - Passenger (UV2)
3
X308 Front Side Door Door Wiring Harness - Passenger to Front Side Door Door Lock Door Wiring Harness -
X308 Front Side Door Door Wiring Harness - Passenger to Front Side Door Door Lock Door Wiring Harness - Passenger ()
4
J601 Front Side Door Door Wiring Harness - Passenger
5
J604 Front Side Door Door Lock Door Wiring Harness - Passenger
6
