Headliner Harness Routing
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

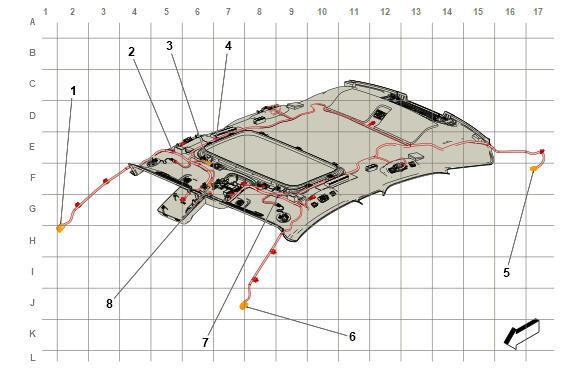

Headliner Harness Routing
| Harness Name | Callout |
|---|---|
| X215 Instrument Panel Wiring Harness to Roof Wiring Harness X215 Instrument Panel Wiring Harness to Roof Wiring Harness | 1 |
| J321 Roof Wiring Harness | 2 |
| X373 Roof Wiring Harness to Universal Garage Door Opener Jumper Harness X373 Roof Wiring Harness to Universal Garage Door Opener Jumper Harness | 3 |
| J303 Roof Wiring Harness | 4 |
| X338 Roof Wiring Harness to Body Wiring Harness X338 Roof Wiring Harness to Body Wiring Harness | 5 |
| X214 Instrument Panel Wiring Harness to Roof Wiring Harness X214 Instrument Panel Wiring Harness to Roof Wiring Harness | 6 |
| J326 Roof Wiring Harness | 7 |
| X373 Roof Wiring Harness to Universal Garage Door Opener Jumper Harness X373 Roof Wiring Harness to Universal Garage Door Opener Jumper Harness | 8 |
