Front Fascia Harness Routing

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

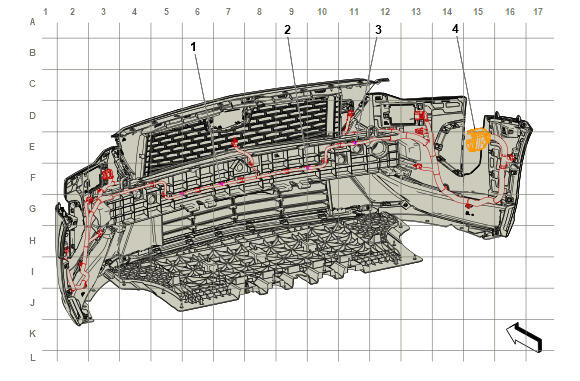

GM5393511Courtesy of GENERAL MOTORS COMPANY
Front Fascia Harness Routing

Harness Name Callout
J135 Front Object Alarm Sensor Wiring Harness 1
J136 Front Object Alarm Sensor Wiring Harness 2
J128 Front Object Alarm Sensor Wiring Harness 3
X100 Front Object Alarm Sensor Wiring Harness to Forward Lamp Wiring Harness X100 Front Object Alarm Sensor Wiring Harness to Forward Lamp Wiring Harness 4
