Forward Lamp Harness - Right Side of Engine Compartment

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

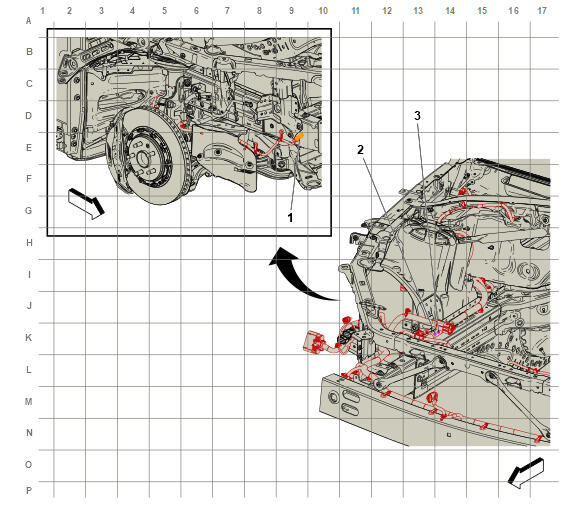

GM5868004Courtesy of GENERAL MOTORS COMPANY
Forward Lamp Harness - Right Side of Engine Compartment

Harness Name Callout
X169 Forward Lamp Wiring Harness to Electronic Suspension Front Suspension Strut Wiring Harness - Right X169 Forward Lamp Wiring Harness to Electronic Suspension Front Suspension Strut Wiring Harness - Right 1
J127 Forward Lamp Wiring Harness 2
J131 Forward Lamp Wiring Harness 3
