Forward Lamp Harness - Left Side of Engine Compartment

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

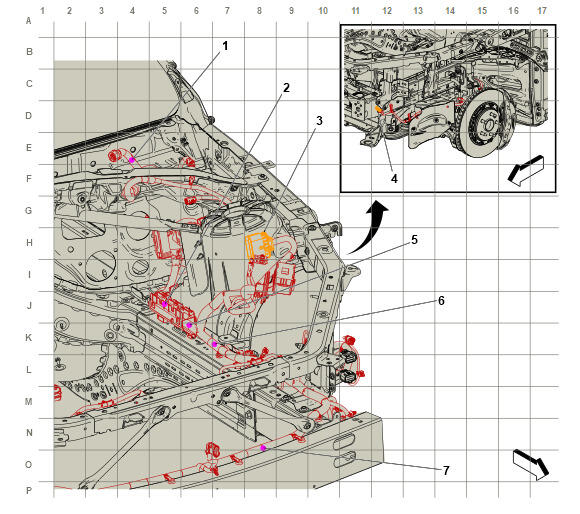

GM5844020Courtesy of GENERAL MOTORS COMPANY
Forward Lamp Harness - Left Side of Engine Compartment

Harness Name Callout
J124 Forward Lamp Wiring Harness 1
J145 Forward Lamp Wiring Harness (LF4) 2
X180 Engine Wiring Harness to Forward Lamp Wiring Harness X180 Engine Wiring Harness to Forward Lamp Wiring Harness 3
X168 Forward Lamp Wiring Harness to Electronic Suspension Front Suspension Strut Wiring Harness - Left X168 Forward Lamp Wiring Harness to Electronic Suspension Front Suspension Strut Wiring Harness - Left 4
J103 Forward Lamp Wiring Harness 5
J129 Forward Lamp Wiring Harness 6
J130 Forward Lamp Wiring Harness 7
