Engine Harness Routing - Top
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

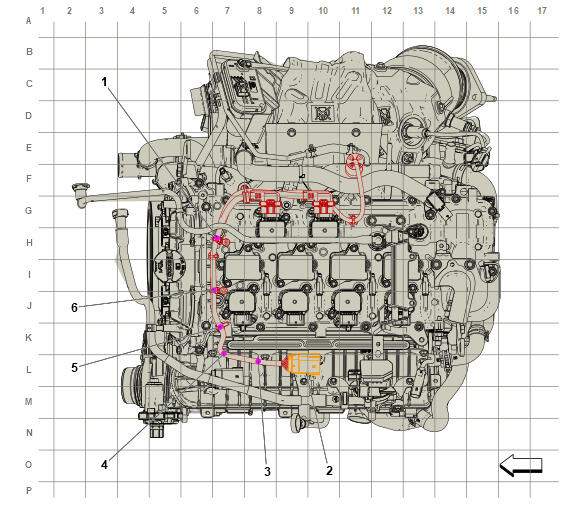

Engine Harness Routing - Top
| Harness Name | Callout |
|---|---|
| J111 Engine Extension Wiring Harness | 1 |
| X132 Engine Wiring Harness to Engine Extension Wiring Harness X132 Engine Wiring Harness to Engine Extension Wiring Harness | 2 |
| J116 Engine Wiring Harness | 3 |
| J115 Engine Wiring Harness | 4 |
| J121 Engine Extension Wiring Harness | 5 |
| J142 Engine Extension Wiring Harness (LSY) | 6 |
