Engine Harness Routing - Right Rear (LSY)
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

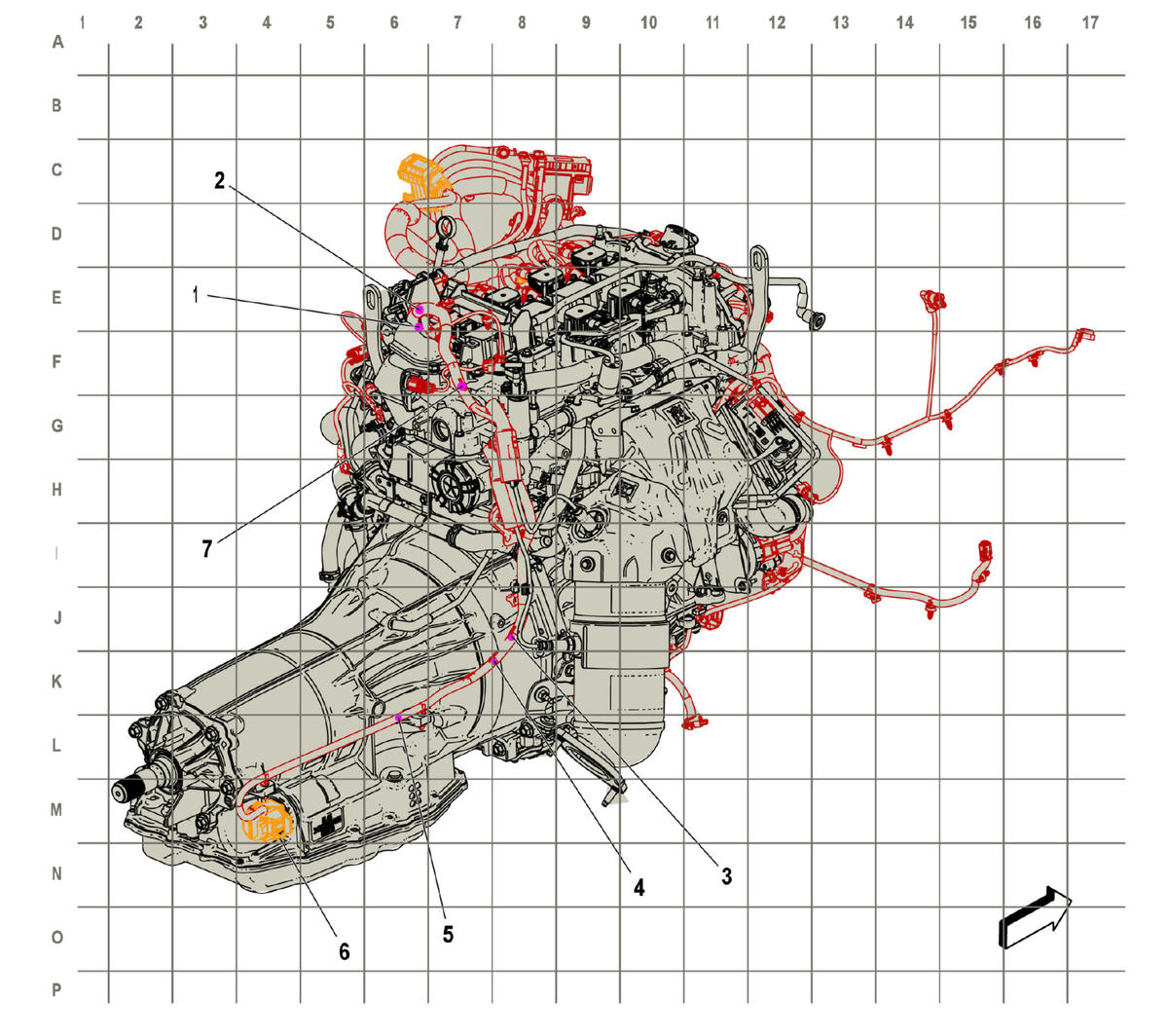

Engine Harness Routing - Right Rear (LSY)
| Harness Name | Callout |
|---|---|
| J114 Engine Wiring Harness | 1 |
| J102 Engine Wiring Harness | 2 |
| J106 Engine Wiring Harness | 3 |
| J110 Engine Wiring Harness | 4 |
| J144 Forward Lamp Wiring Harness (L3B) | 5 |
| X175 Engine Wiring Harness to Transmission Wiring Harness X175 Engine Wiring Harness to Transmission Wiring Harness | 6 |
| J116 Engine Wiring Harness | 7 |
