Engine Harness Routing - Right Rear (L3B)

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
GM5397285Courtesy of GENERAL MOTORS COMPANY

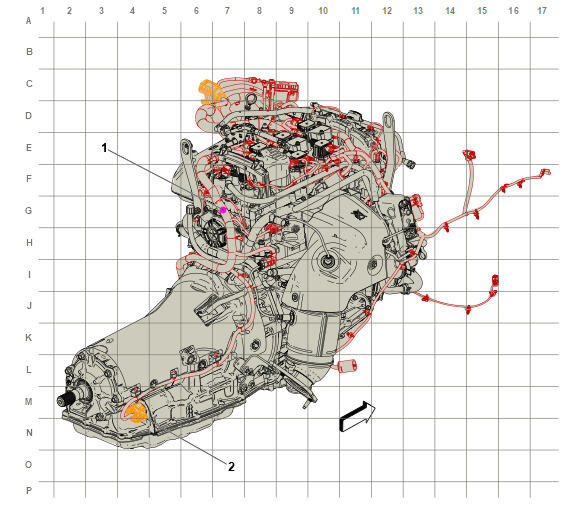

Engine Harness Routing - Right Rear (L3B)

Harness Name Callout
J115 Engine Wiring Harness 1
X175 Engine Wiring Harness to Transmission Wiring Harness X175 Engine Wiring Harness to Transmission Wiring Harness 2
