Driver Seat Harness Routing
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

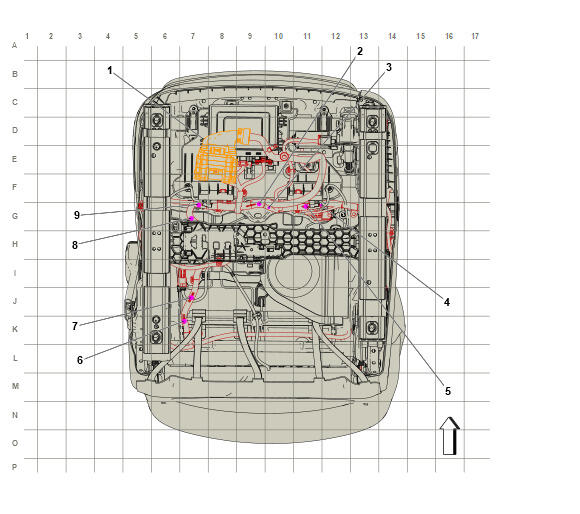

Driver Seat Harness Routing
| Harness Name | Callout |
|---|---|
| X321 Front Seat Wiring Harness - Driver to Body Wiring Harness X321 Front Seat Wiring Harness - Driver to Body Wiring Harness | 1 |
| J355 Front Seat Wiring Harness | 2 |
| J308 Front Seat Wiring Harness | 3 |
| J340 Front Seat Wiring Harness | 4 |
| J329 Body Wiring Harness | 5 |
| J331 Front Seat Wiring Harness | 6 |
| J335 Front Seat Wiring Harness (A45) | 7 |
| J336 Front Seat Wiring Harness (KU9) | 8 |
| J337 Front Seat Wiring Harness | 9 |
