Chassis Harness Routing - Rear Axle

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

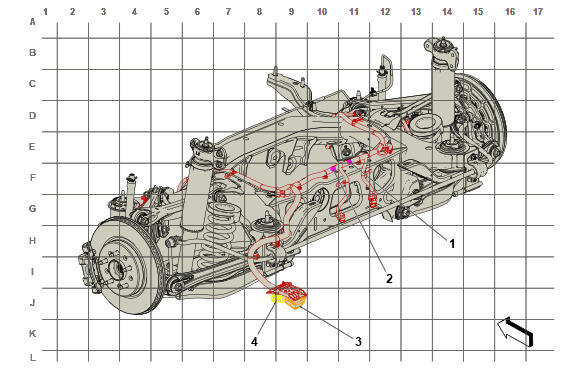

GM5844045Courtesy of GENERAL MOTORS COMPANY
Chassis Harness Routing - Rear Axle

Harness Name Callout
J402 Body Wiring Harness (UGN) 1
J400 Chassis Wiring Harness 2
X331 Body Wiring Harness to Chassis Wiring Harness X331 Body Wiring Harness to Chassis Wiring Harness 3
X330 Body Wiring Harness to Chassis Wiring Harness X330 Body Wiring Harness to Chassis Wiring Harness 4
