Body Harness Routing - Right Rear of Passenger Compartment
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

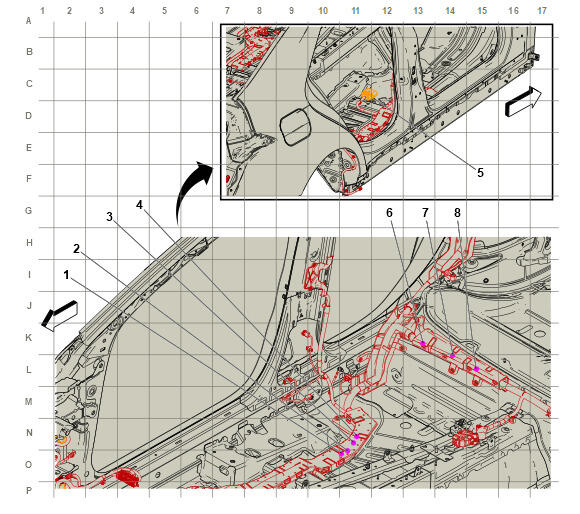

Body Harness Routing - Right Rear of Passenger Compartment
| Harness Name | Callout |
|---|---|
| J317 Body Wiring Harness | 1 |
| J324 Body Wiring Harness | 2 |
| J323 Body Wiring Harness | 3 |
| J360 Body Wiring Harness | 4 |
| X322 Front Seat Wiring Harness - Passenger to Body Wiring Harness X322 Front Seat Wiring Harness - Passenger to Body Wiring Harness | 5 |
| J346 Body Wiring Harness | 6 |
| J354 Body Wiring Harness | 7 |
| J343 Body Wiring Harness | 8 |
