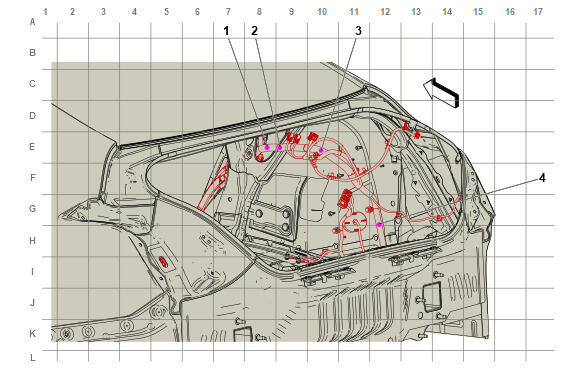

Body Harness Routing - Rear of Vehicle (2 of 2)
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Body Harness Routing - Rear of Vehicle (2 of 2)
| Harness Name |
Callout |
| J407 Body Wiring Harness (UQS) |
1 |
| J405 Body Wiring Harness (UQS) |
2 |
| J406 Body Wiring Harness (UQS) |
3 |
| J401 Body Wiring Harness |
4 |
