Body Harness Routing - Center of Passenger Compartment
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

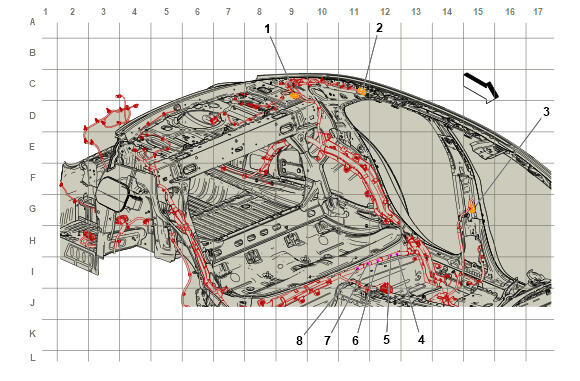

Body Harness Routing - Center of Passenger Compartment
| Harness Name | Callout |
|---|---|
| X338 Roof Wiring Harness to Body Wiring Harness X338 Roof Wiring Harness to Body Wiring Harness | 1 |
| X339 Sunroof Wiring Harness to Body Wiring Harness X339 Sunroof Wiring Harness to Body Wiring Harness | 2 |
| X305 Body Wiring Harness to Rear Side Door Door Wiring Harness - Left X305 Body Wiring Harness to Rear Side Door Door Wiring Harness - Left | 3 |
| J307 Body Wiring Harness | 4 |
| J351 Body Wiring Harness | 5 |
| J358 Body Wiring Harness | 6 |
| J313 Body Wiring Harness | 7 |
| J312 Body Wiring Harness | 8 |
