Under Front of Vehicle Components
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

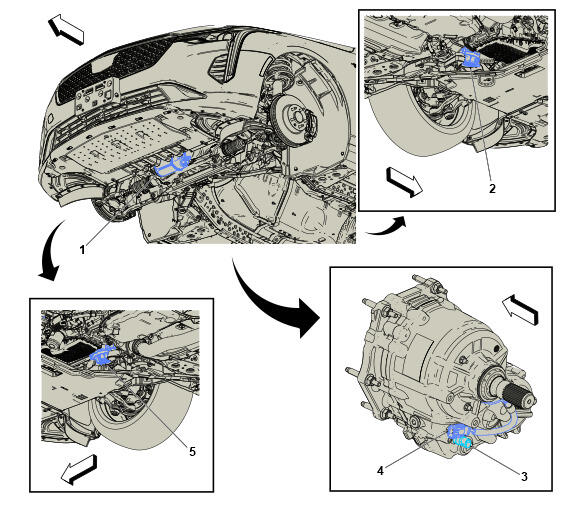

Under Front of Vehicle Components
| Component Name | Callout |
|---|---|
| K43 Power Steering Control Module K43 Power Steering Control Module X1K43 Power Steering Control Module X2 | 1 |
| Q80L Engine Mount Actuator - Left Q80L Engine Mount Actuator - Left | 2 |
| B109 Transfer Case Fluid Temperature Sensor (F46) B109 Transfer Case Fluid Temperature Sensor | 3 |
| M71 Transfer Case Two/Four Wheel Drive Clutch Coil (F46) M71 Transfer Case Two/Four Wheel Drive Clutch Coil | 4 |
| Q80R Engine Mount Actuator - Right Q80R Engine Mount Actuator - Right | 5 |
