Rocker Panel Components

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

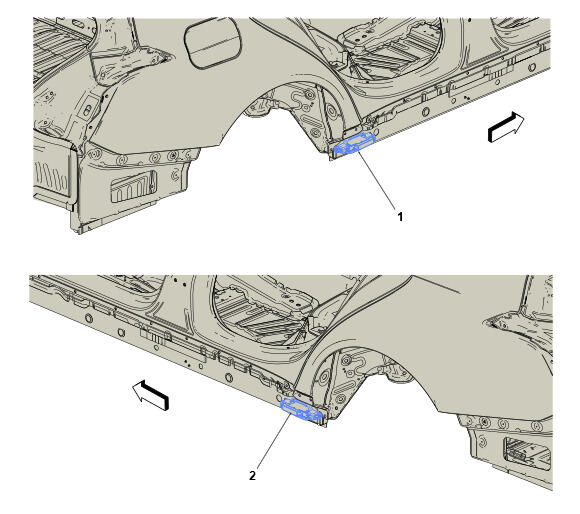

GM5393498Courtesy of GENERAL MOTORS COMPANY
Rocker Panel Components

Component Name Callout
1T10R Low Frequency Body Side Antenna - Right T10R Low Frequency Body Side Antenna - Right 1
T10L Low Frequency Body Side Antenna - Left T10L Low Frequency Body Side Antenna - Left 2
