Fuel Tank Components

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

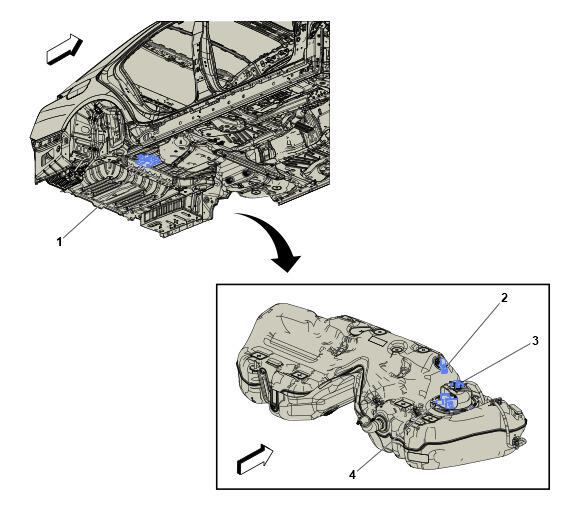

GM5644041Courtesy of GENERAL MOTORS COMPANY
Fuel Tank Components

Component Name Callout
K111 Fuel Pump Power Control Module K111 Fuel Pump Power Control Module 1
B47 Fuel Pressure Sensor B47 Fuel Pressure Sensor 2
B150 Fuel Tank Pressure Sensor B150 Fuel Tank Pressure Sensor 3
A7 Fuel Tank Fuel Pump Module A7 Fuel Tank Fuel Pump Module 4
