Right Rear of Engine Components (LF4)
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

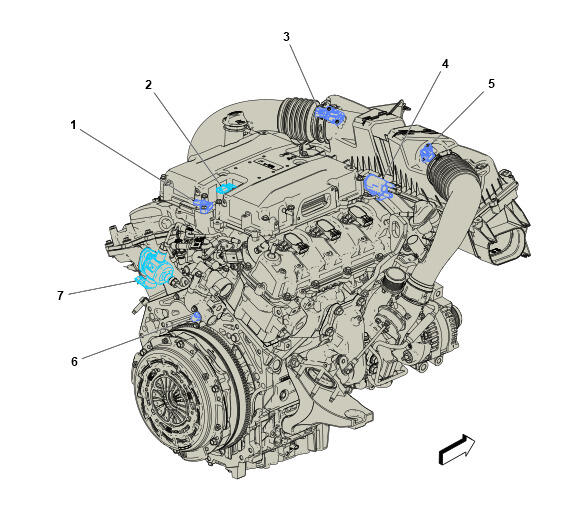

Right Rear of Engine Components (LF4)
| Component Name | Callout |
|---|---|
| B74 Manifold Absolute Pressure Sensor (LF4) B74 Manifold Absolute Pressure Sensor | 1 |
| B111B Turbocharger/Supercharger Boost Pressure and Intake Air Temperature Sensor (LF4) B111B Turbocharger/Supercharger Boost Pressure and Intake Air Temperature Sensor | 2 |
| B75D Mass Airflow Sensor - Bank 1 (LF4) B75D Mass Airflow Sensor - Bank 1 | 3 |
| Q12 Evaporative Emission Canister Purge Solenoid Valve Q12 Evaporative Emission Canister Purge Solenoid Valve | 4 |
| B75E Mass Airflow Sensor - Bank 2 (LF4) B75E Mass Airflow Sensor - Bank 2 | 5 |
| B34 Engine Coolant Temperature Sensor (LF4) B34 Engine Coolant Temperature Sensor | 6 |
| G18 Fuel Pump - High Pressure G18 Fuel Pump - High Pressure (L3B/LSY)G18 Fuel Pump - High Pressure (LF4) | 7 |
