Right Rear of Engine Components (L3B)
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

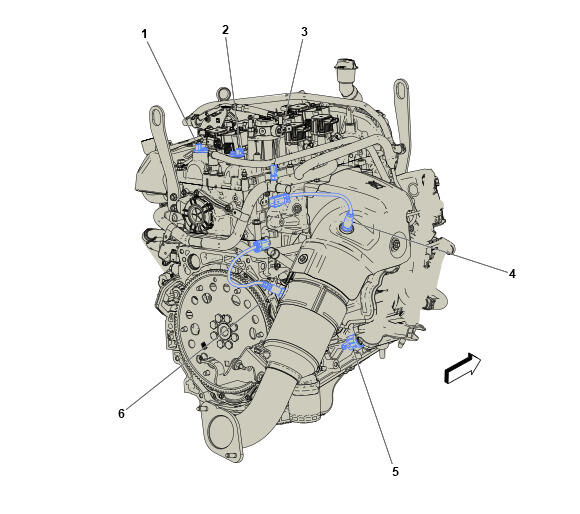

Right Rear of Engine Components (L3B)
| Component Name | Callout |
|---|---|
| B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake | 1 |
| B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust | 2 |
| B34F Engine Coolant Temperature Sensor 6 (LSY/L3B) B34F Engine Coolant Temperature Sensor 6 | 3 |
| B52A Heated Oxygen Sensor 1 (LSY/L3B) B52A Heated Oxygen Sensor 1 (L3B)B52A Heated Oxygen Sensor 1 (LSY) | 4 |
| Q80R Engine Mount Actuator - Right Q80R Engine Mount Actuator - Right | 5 |
| B52B Heated Oxygen Sensor 2 (LSY/L3B) B52B Heated Oxygen Sensor 2 | 6 |
