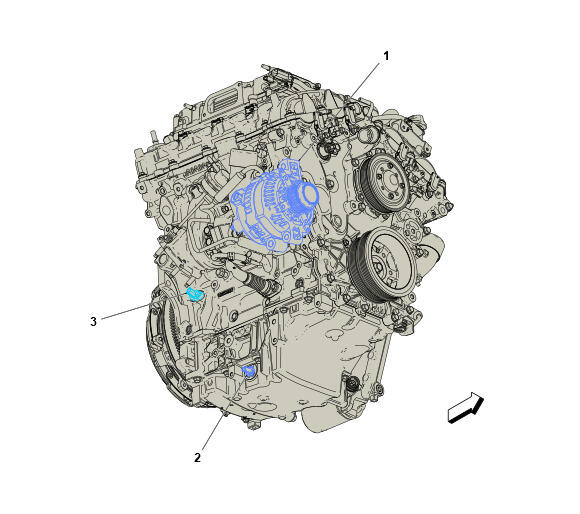

Right Front of Engine Components (LF4)
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Right Front of Engine Components (LF4)
| Component Name | Callout |
|---|---|
| G13 Generator G13 Generator X1 (L3B/LSY)G13 Generator X1 (LF4)G13 Generator X2 (L3B/LSY)G13 Generator X2 (LF4) | 1 |
| B35 Engine Oil Level Indicator Switch B35 Engine Oil Level Indicator Switch | 2 |
| B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (L3B/LSY)B26 Crankshaft Position Sensor (LF4) | 3 |
