Right Front of Engine Components (L3B)
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

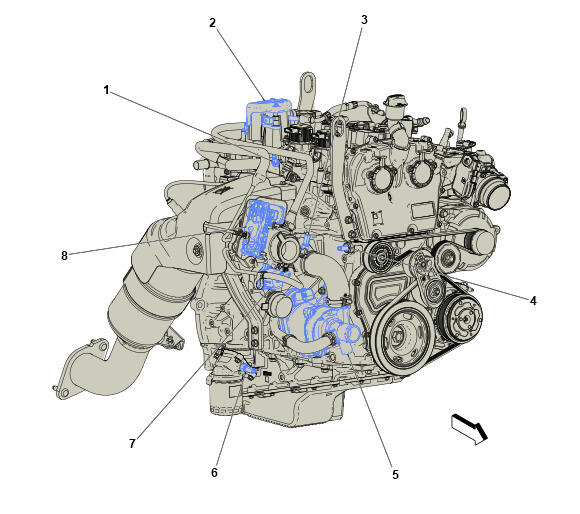

Right Front of Engine Components (L3B)
| Component Name | Callout |
|---|---|
| B34E Engine Coolant Temperature Sensor 5 (LSY/L3B) B34E Engine Coolant Temperature Sensor 5 | 1 |
| G18 Fuel Pump - High Pressure G18 Fuel Pump - High Pressure (L3B/LSY)G18 Fuel Pump - High Pressure (LF4) | 2 |
| B34B Engine Coolant Temperature Sensor 2 (LSY/L3B) B34B Engine Coolant Temperature Sensor 2 (L3B)B34B Engine Coolant Temperature Sensor 2 (LSY) | 3 |
| B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor | 4 |
| G59 Engine Coolant Pump G59 Engine Coolant Pump | 5 |
| B36 Engine Oil Temperature Sensor B36 Engine Oil Temperature Sensor | 6 |
| Q40 Turbocharger Bypass Valve Solenoid (LSY/L3B) Q40 Turbocharger Bypass Valve Solenoid | 7 |
| M128 Turbocharger Wastegate Actuator M128 Turbocharger Wastegate Actuator | 8 |
