Rear of Engine Components (LF4)

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

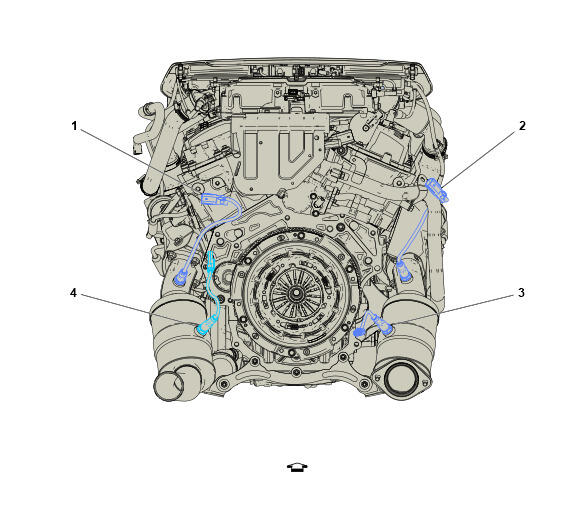

GM5843550Courtesy of GENERAL MOTORS COMPANY
Rear of Engine Components (LF4)

Component Name Callout
B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LF4) B52E Heated Oxygen Sensor - Bank 2 Sensor 1 1
B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LF4) B52C Heated Oxygen Sensor - Bank 1 Sensor 1 2
B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LF4) B52D Heated Oxygen Sensor - Bank 1 Sensor 2 3
B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LF4) B52F Heated Oxygen Sensor - Bank 2 Sensor 2 4
