Left Rear of Engine Components (L3B)
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

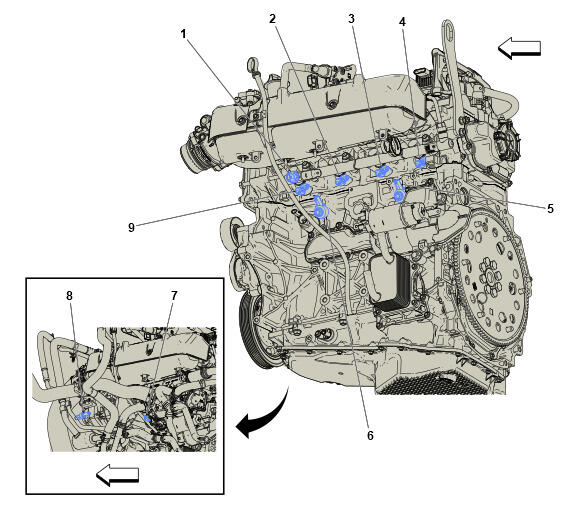

Left Rear of Engine Components (L3B)
| Component Name | Callout |
|---|---|
| B310 Fuel Pressure and Temperature Sensor B310 Fuel Pressure and Temperature Sensor | 1 |
| Q17B Fuel Injector 2 Q17B Fuel Injector 2 | 2 |
| Q17C Fuel Injector 3 Q17C Fuel Injector 3 | 3 |
| Q17D Fuel Injector 4 Q17D Fuel Injector 4 | 4 |
| B68B Knock Sensor 2 B68B Knock Sensor 2 (L3B) | 5 |
| B68A Knock Sensor 1 B68A Knock Sensor 1 | 6 |
| B34F Engine Coolant Temperature Sensor 6 (LSY/L3B) B34F Engine Coolant Temperature Sensor 6 | 7 |
| B1 Air Conditioning Refrigerant Pressure Sensor B1 Air Conditioning Refrigerant Pressure Sensor | 8 |
| Q17A Fuel Injector 1 Q17A Fuel Injector 1 | 9 |
