Left Front of Engine Components (LF4)
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

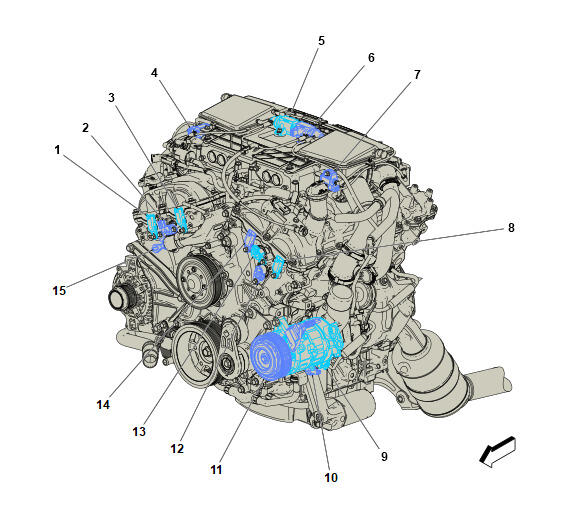

Left Front of Engine Components (LF4)
| Component Name | Callout |
|---|---|
| B23A Camshaft Position Sensor - Bank 1 Exhaust (LF4) B23A Camshaft Position Sensor - Bank 1 Exhaust | 1 |
| Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake (LF4) Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake | 2 |
| B23B Camshaft Position Sensor - Bank 1 Intake (LF4) B23B Camshaft Position Sensor - Bank 1 Intake | 3 |
| Q40A Turbocharger Bypass Valve Solenoid - Bank 1 (LF4) Q40A Turbocharger Bypass Valve Solenoid - Bank 1 | 4 |
| Q42 Turbocharger Wastegate Solenoid Valve (LF4) Q42 Turbocharger Wastegate Solenoid Valve | 5 |
| Q42B Turbocharger 2 Wastegate Solenoid Valve (LF4) Q42B Turbocharger 2 Wastegate Solenoid Valve | 6 |
| Q40B Turbocharger Bypass Valve Solenoid - Bank 2 (LF4) Q40B Turbocharger Bypass Valve Solenoid - Bank 2 | 7 |
| B23C Camshaft Position Sensor - Bank 2 Exhaust (LF4) B23C Camshaft Position Sensor - Bank 2 Exhaust | 8 |
| Q46 Air Conditioning Compressor Solenoid Valve Q46 Air Conditioning Compressor Solenoid Valve | 9 |
| B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor | 10 |
| Q2 Air Conditioning Clutch Q2 Air Conditioning Clutch | 11 |
| Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LF4) Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust | 12 |
| Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake (LF4) Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake | 13 |
| B23D Camshaft Position Sensor - Bank 2 Intake (LF4) B23D Camshaft Position Sensor - Bank 2 Intake | 14 |
| Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust (LF4) Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust | 15 |
