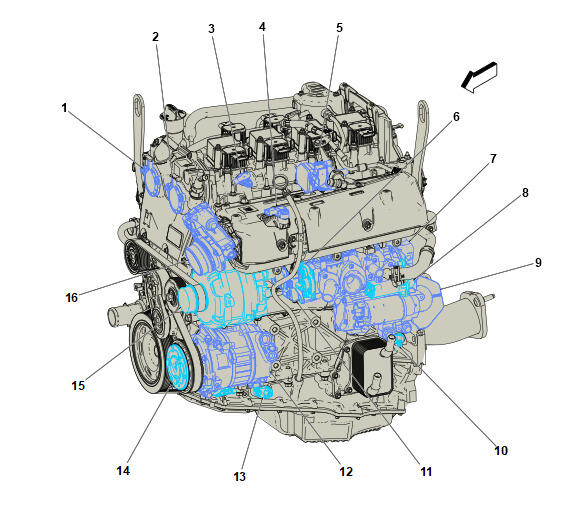

Left Front of Engine Components (L3B)

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Component Name	Callout
Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LSY/L3B) Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (L3B)Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LSY)	1
Q6F Camshaft Position Actuator Solenoid Valve - Intake (LSY/L3B) Q6F Camshaft Position Actuator Solenoid Valve - Intake (L3B)Q6F Camshaft Position Actuator Solenoid Valve - Intake (LSY)	2
B338A Intake Camshaft Profile Sleeve Position Sensor 1 B338A Intake Camshaft Profile Sleeve Position Sensor 1	3
B65 Manifold Absolute Pressure and Intake Air Temperature Sensor (LSY/L3B) B65 Manifold Absolute Pressure and Intake Air Temperature Sensor	4
G58 Evaporative Emission Canister Purge Pump G58 Evaporative Emission Canister Purge Pump	5
B34A Engine Coolant Temperature Sensor 1 (LSY/L3B) B34A Engine Coolant Temperature Sensor 1	6
Q97 Engine Coolant Flow Control Valve	7
Q74 Engine Coolant Bypass Valve Q74 Engine Coolant Bypass Valve	8
M64 Starter M64 Starter X1 (L3B/LSY)M64 Starter X1 (LF4)M64 Starter X2 (L3B)M64 Starter X2 (LF4)M64 Starter X2 (LSY)	9
B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (L3B/LSY)B26 Crankshaft Position Sensor (LF4)	10
Q97B Engine Coolant Flow Control Valve - Block Q97B Engine Coolant Flow Control Valve - Block	11
G1 Air Conditioning Compressor	12
Q80L Engine Mount Actuator - Left Q80L Engine Mount Actuator - Left	13
Q2 Air Conditioning Clutch Q2 Air Conditioning Clutch	14
G13 Generator G13 Generator X1 (L3B/LSY)G13 Generator X1 (LF4)G13 Generator X2 (L3B/LSY)G13 Generator X2 (LF4)	15
Q38 Throttle Body Q38 Throttle Body	16
