Automatic Transmission Components - Case (MQA)
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

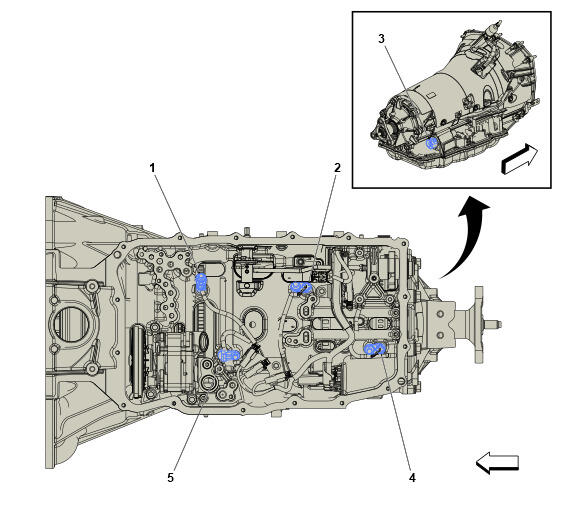

Automatic Transmission Components - Case (MQA)
| Component Name | Callout |
|---|---|
| B14DB Automatic Transmission Intermediate Speed Sensor 2 (MQA/MHU) B14DB Automatic Transmission Intermediate Speed Sensor 2 | 1 |
| B14DA Automatic Transmission Intermediate Speed Sensor 1 (MQA/MHU) B14DA Automatic Transmission Intermediate Speed Sensor 1 | 2 |
| T12 Automatic Transmission T12 Automatic Transmission X1T12 Automatic Transmission X2 (MQA)T12 Automatic Transmission X3 (MQA) | 3 |
| B14A Automatic Transmission Output Speed Sensor B14A Automatic Transmission Output Speed Sensor | 4 |
| B14C Automatic Transmission Input Speed Sensor B14C Automatic Transmission Input Speed Sensor | 5 |
