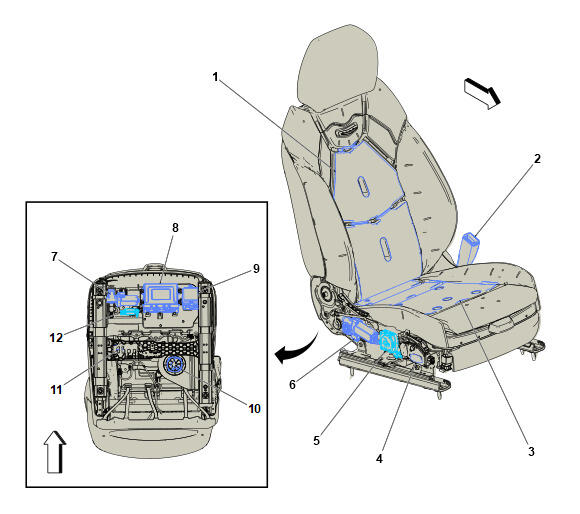

Passenger Seat Components

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Items
1. E14C Front Seat Back Heater - Passenger (KA1) E14C Front Seat Back Heater - Passenger
2. B61P Seat Belt Tension Sensor - Passenger B61P Seat Belt Tension Sensor - Passenger
3. E14D Front Seat Cushion Heater - Passenger (KA1) E14D Front Seat Cushion Heater - Passenger
4. S64P Front Seat Adjuster Switch - Passenger S64P Front Seat Adjuster Switch - Passenger (-(AHH/AKE))S64P Front Seat Adjuster Switch - Passenger (AVU+(AHH/AKE))
5. S65P Front Seat Lumbar Switch - Passenger S65P Front Seat Lumbar Switch - Passenger (-(AHH/AKE))S65P Front Seat Lumbar Switch - Passenger (AVU+(AHH/AKE))S65P Front Seat Lumbar Switch - Passenger (AVU-(AHH/AKE))
6. M55P Front Seat Vertical Adjuster Actuator - Passenger M55P Front Seat Vertical Adjuster Actuator - Passenger
7. M50P Front Seat Tilt Adjuster Actuator - Passenger M50P Front Seat Tilt Adjuster Actuator - Passenger
8. K40P Passenger Seat Adjuster Memory Module (AVU) K40P Passenger Seat Adjuster Memory Module X1 K40P Passenger Seat Adjuster Memory Module X2 K40P Passenger Seat Adjuster Memory Module X3	9. K29FV Front Seat Heater Vent Control Module (KA1) K29FV Front Seat Heater Vent Control Module X1 K29FV Front Seat Heater Vent Control Module X2
10. M73P Front Seat Cushion Ventilation Blower - Passenger M73P Front Seat Cushion Ventilation Blower - Passenger
11. M51P Front Seat Adjuster Actuator - Passenger M51P Front Seat Adjuster Actuator - Passenger
12. K85P Restraints Occupant Classification System Module - Passenger K85P Restraints Occupant Classification System Module - Passenger
