Passenger Seat Back Components
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

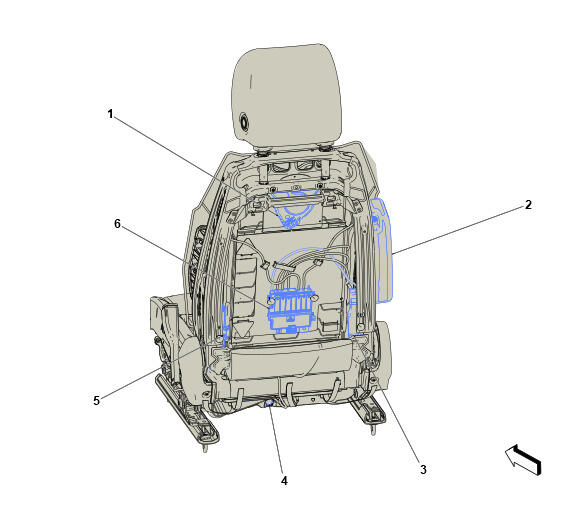

Passenger Seat Back Components
| Component Name | Callout |
|---|---|
| M73B Front Seat Back Ventilation Blower - Passenger M73B Front Seat Back Ventilation Blower - Passenger | 1 |
| F106P Front Seat Outboard Seat Back Airbag - Passenger F106P Front Seat Outboard Seat Back Airbag - Passenger | 2 |
| G31P Front Seat Back Lumbar Pump - Passenger (AVU) G31P Front Seat Back Lumbar Pump - Passenger | 3 |
| E1P Front Side Door Light Conductor Lamp - Passenger Trim Panel (TSQ) E1P Front Side Door Light Conductor Lamp - Passenger Trim Panel | 4 |
| M56P Front Seat Recliner Actuator - Passenger M56P Front Seat Recliner Actuator - Passenger | 5 |
| K134P Front Seat Bolster Memory Module - Passenger (AVU) K134P Front Seat Bolster Memory Module - Passenger | 6 |
