Passenger Compartment - Right Rear
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

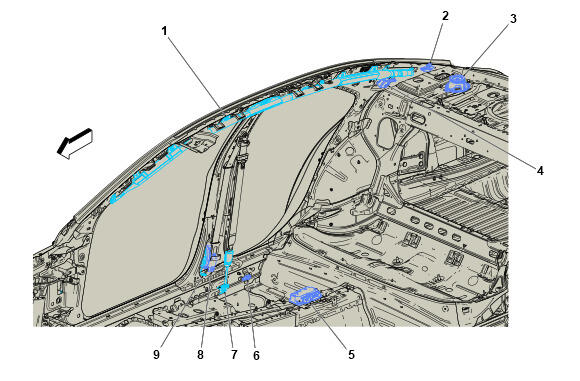

Passenger Compartment - Right Rear
| Harness Name | Callout |
|---|---|
| F105RR Front and Rear Row Roof Rail Airbag - Right Rear F105RR Front and Rear Row Roof Rail Airbag - Right Rear | 1 |
| R14R Radio Antenna Coil - Right R14R Radio Antenna Coil - Right X1R14R Radio Antenna Coil - Right X2 | 2 |
| P19AP Radio Rear Surround Speaker - Right (UQS) P19AP Radio Rear Surround Speaker - Right | 3 |
| K77 Remote Function Actuator Module K77 Remote Function Actuator Module | 4 |
| K36 Restraints Control Module K36 Restraints Control Module X1K36 Restraints Control Module X2 | 5 |
| B63RRB Airbag Side Impact Rear Sensor - Right Sill B63RRB Airbag Side Impact Rear Sensor - Right Sill | 6 |
| F113P Front Seat Belt Anchor Plate Tensioner - Passenger F113P Front Seat Belt Anchor Plate Tensioner - Passenger | 7 |
| F112P Front Seat Belt Retractor - Passenger F112P Front Seat Belt Retractor - Passenger | 8 |
| B61P Seat Belt Tension Sensor - Passenger B61P Seat Belt Tension Sensor - Passenger | 9 |
