Overhead Console Components

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

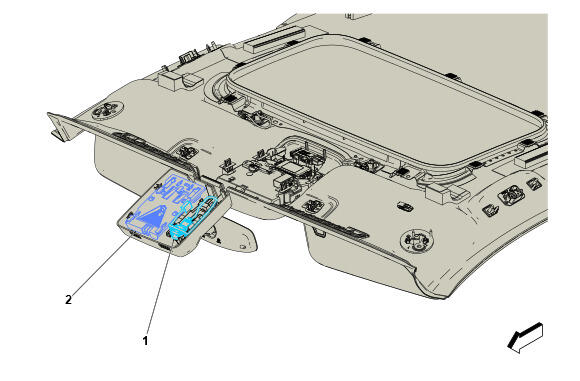

GM5393485Courtesy of GENERAL MOTORS COMPANY
Overhead Console Components

Component Name Callout
B117 Windshield Outside Moisture Sensor (CJ2) B117 Windshield Outside Moisture Sensor 1
B174W Front View Camera - Windshield B174W Front View Camera - Windshield 2
