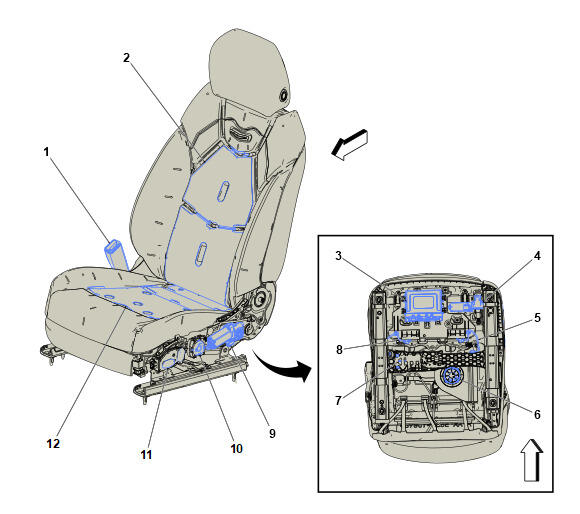

Driver Seat Components

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Component Name	Callout
B88D Seat Belt Switch - Driver B88D Seat Belt Switch - Driver	1
E14A Front Seat Back Heater - Driver (KA1) E14A Front Seat Back Heater - Driver	2
K40D Driver Seat Adjuster Memory Module (A45) K40D Driver Seat Adjuster Memory Module X1 (A45)K40D Driver Seat Adjuster Memory Module X2 (A45)K40D Driver Seat Adjuster Memory Module X3 (A45)	3
M50D Front Seat Tilt Adjuster Actuator - Driver M50D Front Seat Tilt Adjuster Actuator - Driver	4
P45RR Front Seat Lane Departure Warning Actuator - Right Rear (HS1) P45RR Front Seat Lane Departure Warning Actuator - Right Rear	5
M73D Front Seat Cushion Ventilation Blower - Driver M73D Front Seat Cushion Ventilation Blower - Driver (KU9)	6
M51D Front Seat Adjuster Actuator - Driver M51D Front Seat Adjuster Actuator - Driver	7
P45LR Front Seat Lane Departure Warning Actuator - Left Rear (HS1) P45LR Front Seat Lane Departure Warning Actuator - Left Rear	8
M55D Front Seat Vertical Adjuster Actuator - Driver M55D Front Seat Vertical Adjuster Actuator - Driver	9
S65D Front Seat Lumbar Switch - Driver S65D Front Seat Lumbar Switch - Driver (AL9)S65D Front Seat Lumbar Switch - Driver (AVK)	10
S64D Front Seat Adjuster Switch - Driver S64D Front Seat Adjuster Switch - Driver (-A45)S64D Front Seat Adjuster Switch - Driver (A45)	11
E14B Front Seat Cushion Heater - Driver (KA1) E14B Front Seat Cushion Heater - Driver	12
