Luggage Compartment Components - Rear

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

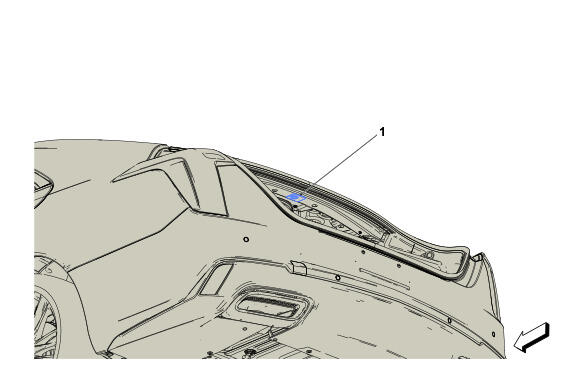

GM5393492Courtesy of GENERAL MOTORS COMPANY
Luggage Compartment Components - Rear

Component Name Callout
E8S Rear Compartment Courtesy Lamp E8S Rear Compartment Courtesy Lamp 1
