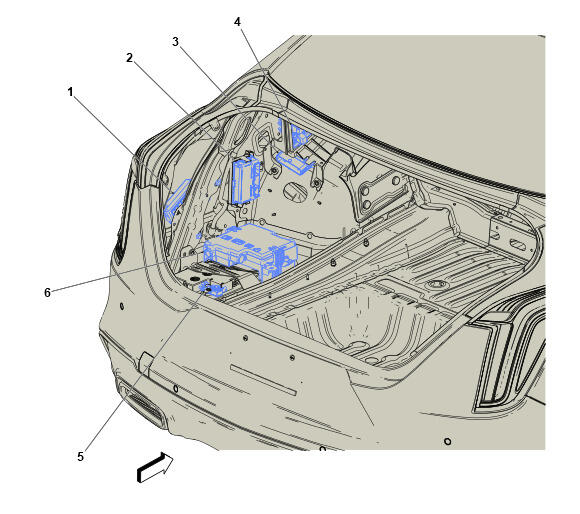

Luggage Compartment Components - Left
| Component Name | Callout |
|---|---|
| K164 Differential Control Module K164 Differential Control Module X1K164 Differential Control Module X2 | 1 |
| K69 Transfer Case Control Module (F46) K69 Transfer Case Control Module X1K69 Transfer Case Control Module X2 | 2 |
| K19 Suspension Control Module K19 Suspension Control Module | 3 |
| X53A Body Wiring Harness Junction Block - Rear X53A Body Wiring Harness Junction Block - Rear X1X53A Body Wiring Harness Junction Block - Rear X2 | 4 |
| B110 Battery Monitor Module B110 Battery Monitor Module X1B110 Battery Monitor Module X2 | 5 |
| X50D Battery Distribution Fuse Block X50D Battery Distribution Fuse Block X1X50D Battery Distribution Fuse Block X2X50D Battery Distribution Fuse Block X4X50D Battery Distribution Fuse Block X5X50D Battery Distribution Fuse Block X6X50D Battery Distribution Fuse Block X7X50D Battery Distribution Fuse Block X9 | 6 |
