Behind Rear Fascia Components

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

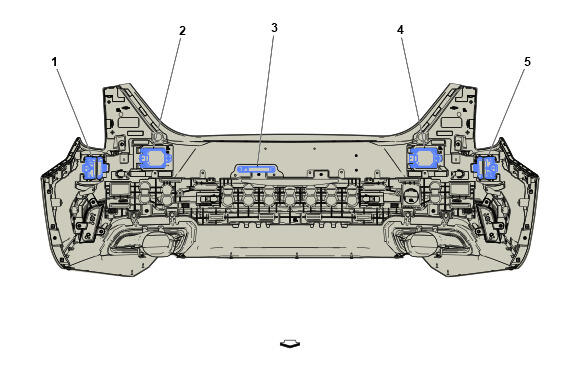

GM5393494Courtesy of GENERAL MOTORS COMPANY
Behind Rear Fascia Components

Component Name Callout
B218R Side Obstacle Detection Control Module - Right (UKC) B218R Side Obstacle Detection Control Module - Right 1
B233RR Short Range Radar Rear Sensor - Right (UGN) B233RR Short Range Radar Rear Sensor - Right 2
T10G Low Frequency Rear Bumper Antenna T10G Low Frequency Rear Bumper Antenna 3
B233LR Short Range Radar Rear Sensor - Left (UGN) B233LR Short Range Radar Rear Sensor - Left 4
B218L Side Obstacle Detection Control Module - Left (UKC) B218L Side Obstacle Detection Control Module - Left 5
