Steering Wheel Components

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

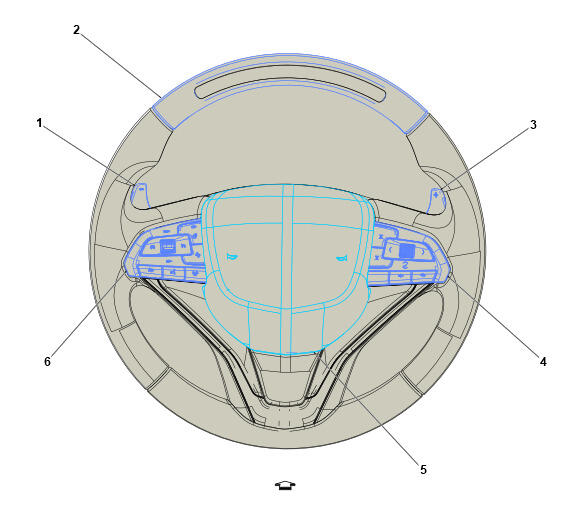

GM5644040Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Components

Component Name Callout
S2L Automatic Transmission Manual Shift Auxiliary Position Switch - Left S2L Automatic Transmission Manual Shift Auxiliary Position Switch - Left 1
P51 Steering Wheel LED Display (UKL) P51 Steering Wheel LED Display (UKL) 2
S2R Automatic Transmission Manual Shift Auxiliary Position Switch - Right S2R Automatic Transmission Manual Shift Auxiliary Position Switch - Right 3
S70R Radio Control Switch - Steering Wheel S70R Radio Control Switch - Steering Wheel 4
F107 Steering Wheel Airbag F107 Steering Wheel Airbag X1F107 Steering Wheel Airbag X2 5
S70L Cruise Control Switch S70L Cruise Control Switch 6
