Steering Column Components
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

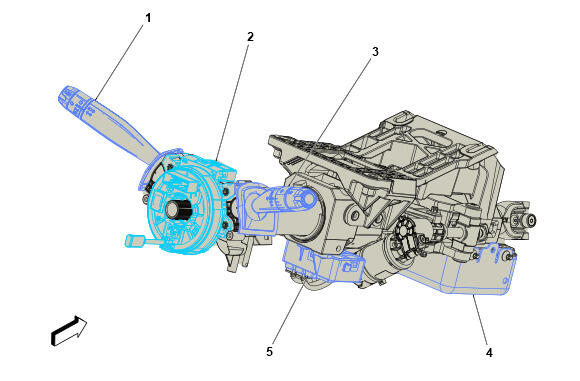

Steering Column Components
| Component Name | Callout |
|---|---|
| S78 Turn Signal Switch S78 Turn Signal Switch | 1 |
| X85 Steering Wheel Airbag Coil X85 Steering Wheel Airbag Coil X1X85 Steering Wheel Airbag Coil X2 | 2 |
| S82 Windshield Wiper and Windshield Washer Switch S82 Windshield Wiper and Windshield Washer Switch | 3 |
| K60 Column Lock Module K60 Column Lock Module | 4 |
| K99 Steering Column Control Module K99 Steering Column Control Module X1K99 Steering Column Control Module X2K99 Steering Column Control Module X3K99 Steering Column Control Module X4 | 5 |
