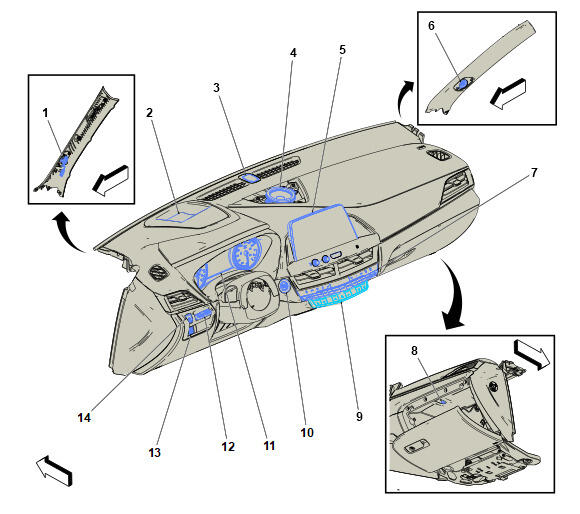

Front of Instrument Panel Components

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Component Name	Callout
P19H Radio Windshield Side Garnish Molding Speaker - Left Front P19H Radio Windshield Side Garnish Molding Speaker - Left Front (UQG)P19H Radio Windshield Side Garnish Molding Speaker - Left Front (UQS)	1
P29 Head-Up Display (UV6) P29 Head-Up Display X1 P29 Head-Up Display X2	2
B10B Sun Load Temperature and Ambient Light and Security Indicator Sensor B10B Sun Load Temperature and Ambient Light and Security Indicator Sensor	3
P19B Radio Front Center Speaker P19B Radio Front Center Speaker (UQG)P19B Radio Front Center Speaker (UQS+LF4)P19B Radio Front Center Speaker (UQS-LF4)	4
A22 Radio Control A22 Radio Control X1 A22 Radio Control X2	5
P19V Radio Windshield Side Garnish Molding Speaker - Right Front P19V Radio Windshield Side Garnish Molding Speaker - Right Front (UQG)P19V Radio Windshield Side Garnish Molding Speaker - Right Front (UQS)	6
A26 Heater and Air Conditioning User Interface Control - Front A26 Heater and Air Conditioning User Interface Control - Front	7
E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp	8
S26 Hazard Warning Switch S26 Hazard Warning Switch	9
S38 On/Off Vehicle Switch S38 On/Off Vehicle Switch	10
P16 Instrument Panel Cluster Control Module P16 Instrument Panel Cluster Control Module X1 (-MHU)P16 Instrument Panel Cluster Control Module X1 (MHU)P16 Instrument Panel Cluster Control Module X2 P16 Instrument Panel Cluster Control Module X3 (-MHU)P16 Instrument Panel Cluster Control Module X3 (MHU)	11
S27 Head-Up Display Switch S27 Head-Up Display Switch	12
S36 Dimmer Switch S36 Dimmer Switch	13
S91 Parking Brake Control Switch S91 Parking Brake Control Switch	14
