Bottom of Instrument Panel Components
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

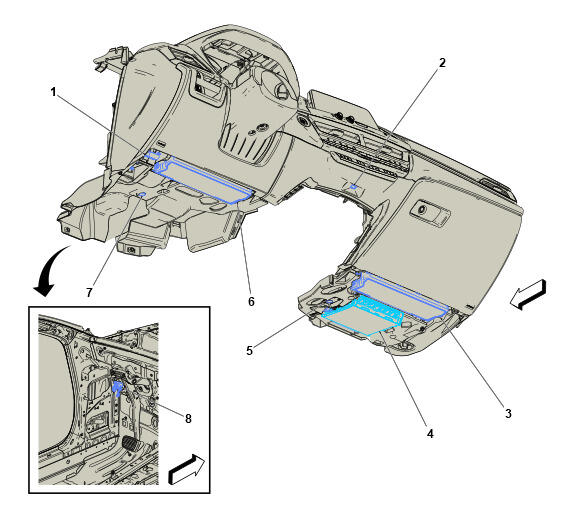

Bottom of Instrument Panel Components
| Component Name | Callout |
|---|---|
| X84 Data Link Connector X84 Data Link Connector | 1 |
| E1W Instrument Panel Light Conductor Lamp E1W Instrument Panel Light Conductor Lamp | 2 |
| F114P Instrument Panel Lower Airbag - Passenger F114P Instrument Panel Lower Airbag - Passenger | 3 |
| K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2K9 Body Control Module X3K9 Body Control Module X4K9 Body Control Module X5K9 Body Control Module X6K9 Body Control Module X7K9 Body Control Module X8 | 4 |
| E8VC Front Floor Courtesy Lamp - Right E8VC Front Floor Courtesy Lamp - Right | 5 |
| F114D Instrument Panel Lower Airbag - Driver F114D Instrument Panel Lower Airbag - Driver | 6 |
| E8VA Front Floor Courtesy Lamp - Left E8VA Front Floor Courtesy Lamp - Left | 7 |
| B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor (-MG9)B22 Brake Pedal Position Sensor (MG9) | 8 |
