Bottom of Center Console Components

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

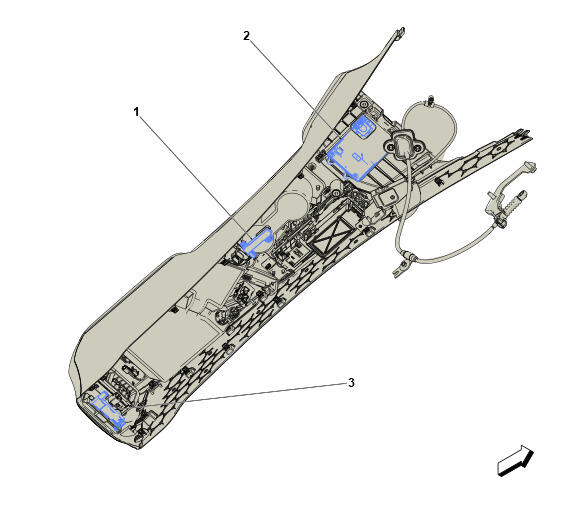

GM5393481Courtesy of GENERAL MOTORS COMPANY
Bottom of Center Console Components

Component Name Callout
T10J Low Frequency Instrument Panel Antenna T10J Low Frequency Instrument Panel Antenna 1
T22 Wireless Accessory Charging Module (K4C) T22 Wireless Accessory Charging Module 2
T10K Low Frequency Console Antenna - Rear T10K Low Frequency Console Antenna - Rear 3
